About MEcubE+

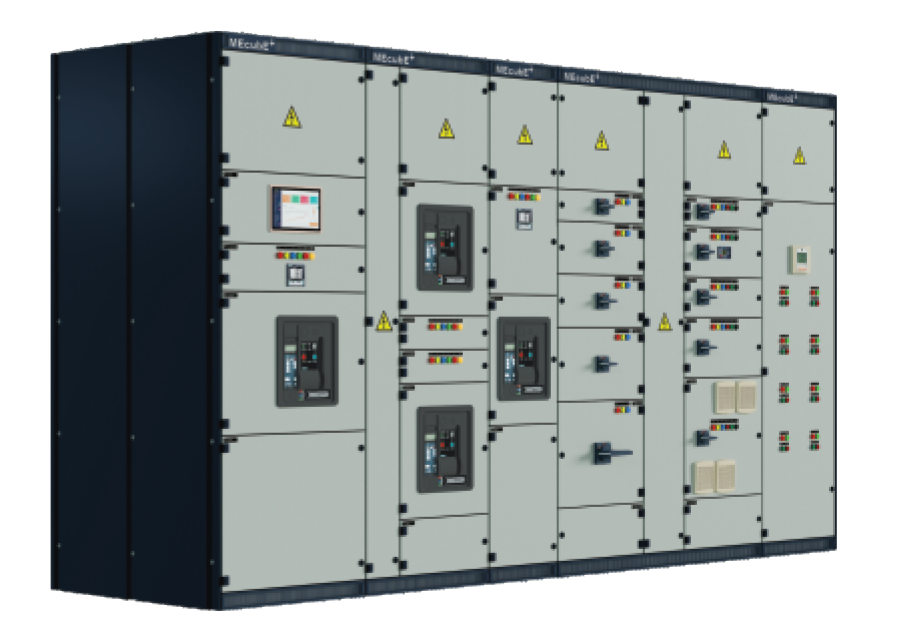

MECubE+ is a Low Voltage Switchboard system, designed by Marine Electricals, considering the customers basic needs safety & reliability and modern demands of connectivity for monitoring and energy efficiency.

We are a licensed partner of Marine Electricals for this state-of-the-art low voltage switchboard, offering both pleasing aesthetics and technically advanced functioning.

MECubE+ Low Voltage Switchboard sets high standards for Power Control Centre & Motor Control Centre for industrial applications and in Infrastructure installations. These switchboards are design verified and extensively tested as per latest IEC 61439 standards by ASTA, UK.

MECubE+ goes beyond standards to ensure highest possible degree of safety for operators andinstallation. Designed to be space and energy efficient while ensuring ease of installation and operation.

MECubE+ is a simple and modular solution which can be optimally adapted to every requirement when designing the complete system.

Buildings and Infra
  1. Compact
  2. Aesthetic
  3. Cost-efficient
  4. Operator Safety
  5. Energy Monitoring

Data Center
  1. Smart & Modular
  2. Flexible
  3. Scalable
  4. Continuity of Supply
  5. Energy Optimization

Industry
  1. Adaptable
  2. Compact
  3. Cost-efficient
  4. Smart Solutions
  5. Energy Monitoring

Industry
  1. Efficient Designs
  2. Advance iMCC Solutions
  3. Harsh Environment Compatibility
  4. Process Control

A Complete Range for Diverse Applications

Certified by ASTA as per IEC61439-1&2

MECubE+ has been comprehensively tested, design verified and certified by ASTA For safety and reliability of complete LV electrical system it is necessary to conduct all the design verifications tests for the complete range, major ratings and types of feeders, incorporating associated switchgear devices in the system.

Complete Range For power distribution and motor control, including variable speed drives, motor starters, power factor correction and harmonic filtering.





  • PCC – High-power incomers and feeders upto 6300 A
  • PMCC – Power and Motor Feeders A
  • MCC – Motor feeders, soft starters & Variable speed drives
  • IMCC – Intelligent Power and motor feeders
  • PFC –Capacitor Feeders

MEcubE IEC 61439 Certified LV Switchboards

Accidental Touch Protection

Barriers are provided to prevent any accidental touch to live parts after opening the feeder door or busbar compartment . The terminations of the control components mounted on door are also finger touch proof.

Funtional Segregation

Effective segregation of main function from each other busbar, functional units and Cable chamber. Based on your need Forms 2, 3, 4 can be offerd .

Ergonomics And Aesthetics

Ergonomically designed hinges, grills, door locks etc. offer pleasing aesthetics. The layout of the entire switchboard is engineered to offer consistent look and operational ease.

Certified By ASTA

As per IEC 61439 -1 & 2, all type tests and design verifications done on complete range, incorporating leading makes of switchgears.

Modularity

Modular concepts in design in feeder module design, cable alley & busbar sizing helps for faster manufacturing & assembly at factory. Easer modifications and upgrades at site.

Selectivity

Top or Bottom busbars to suit cable entry Cable connections from side, rear or front Choice of cable alley size Reserved places for future use Choice of colour.

Connectivity

MECubE+ uses modern intelligent protection, switching and control devices that have capability to capture extensive diagnostics, status, measuring, statistical and service data.

With MEConnecT Application software, MECubE+ switchboard can be operated and monitored uniformly across the installation. Status information and measured values are displayed comprehensively and clearly.

The data can be seamlessly connected with high level process automation and energy monitoring systems.

With help of MEconnecT software, data can be accessed locally on the switchboard display unit, in control room and even remotely on mobile devices.

Available Modules of MEconnecT:

  • MEconnecT Eco – Basic monitoring
  • MEconnecT Touch – Diagnostics and Analytics
  • ME Mobile ConnecT – Cloud & Value added services

Technical Specification

Rated Operational Voltage 380/ 415/ 440/ 690 Vac
Rated Frequency 50 / 60 Hz
Main Busbar Rating 4000A (up to 6300 A on request)
Rated Shorttime Current 65KA (up to 100 KA on request)
Applications Power Distribution, Motor Control
Standards IEC 61439-1 & 2, IEC 60529, IEC TR 61641
Form of Internal Operation Form 2b Form 3b Form 4a Form 4b
Degree of Protection IP31, IP42, Ip54
Operating Temperature -5 Deg C to 50 Deg C
Protocols Modbus, Ethernet TCP/IP, Ethernet/IP, Profibus-DP, DeviceNet CANopen, etc”
