About Bijlify PRO – I
AC Type II Smart Chargers

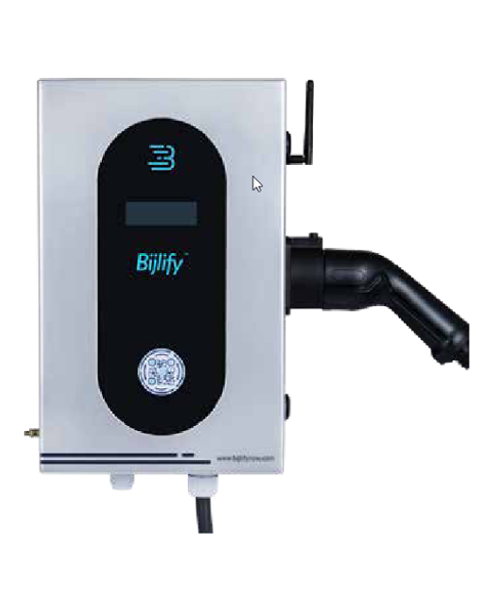

7.4kW wallbox AC Charger is composed of main control unit,
charging interface, metering and charging unit. It’s resistant
to vibration and it covers a small area which can be installed
in indoor and outdoor environments and provides AC power
for electric vehicles with on board charger.
Product Feature
- Charging protection such as input over / under voltage, connection abnormality, emergency stop.
- Protection against lightning protection, leakage, short circuit, over current.
- Wall or Pole mounted installation.
- Smart interface and easy usability.
- Monitor and control through EViGO mobile app & 3rd party systems.
- Supports IEC 61851 standard charging sequence.
Applications for
Residential & Commercial Buildings
Commercial
Buildings, CPO*
Charging
Stations (L,M,S)
EV Dealers &
Service Providers
Technical Specification
| Power Input | |
|---|---|
| Power Connection | P + N + PE |
| Input Voltage | 230 VAC±10% |
| Frequency | 50Hz±10% |
| Power Output | |
| Rated Power | 7.4kW |
| Rated Output Current | 32Amp |
| No. of Output | 1 |
| Plug | AC Type 2 |
| Protection | |
| Push Button | Emergency Stop Button |
| Electrical Protection | Over Current, Over / Under Voltage, Surge Protection, Short Circuit Protection, Earth-Leakage, Ground Fault |
| User Interface | |
| Display | 20×4 Character LCD display with blue backlight |
| Status Indicator | Multicolored LED indicator |
| User Authorization | QR Code |
| Communication | |
|---|---|
| Network Connectivity | GSM / GPRS |
| Communication Protocol | OCPP v1.6j |
| Environment | |
| Operating Temperature | -20ºC to 60ºC |
| Storage Temperature | -40ºC to 70ºC |
| Humidity | 5% to 95% without condensation |
| Altitude | ≤2000m |
| Place of Installation | Indoor and Outdoor |
| Mechanical Design | |
| Shell Material | Hot-dip galvanized steel sheet |
| Ingress Protection | IP-55 |
| Cooling | Natural Cooling |
| Length of charging gun | 5m |
| Installation | Wall / Pole Mounted |
| Dimensions (WXDXH) | 310mmx140mmx450mm |
| Regulation | |
| Charging Mode Standard | IEC 61851-1 Charging Mode-3 |
*Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
